PRODUCTS WE OFFER
BRNG Cooling Panel Ent. has been producing and installing sandwich panels for years, and we consistently offer high-quality goods at reasonable prices.
STEEL STRUCTURE
STEEL STRUCTURE
- The steel structure frame consists of the steel beam, steel column, wall and roof purline, brace tie bar, and gutter, which is made up the main structure and frame for the building.
- The wall and roof panel which covers all around of the building, can be used by the steel panel or sandwich panel. Steel sheet panel is easy to transport and install, and with even lower cost, while the sandwich panel consists of the EPS panel, PU panel, and rock wool panel, which is with the high efficiency of heat preservation(can install the air conditioner).
- The components are made up of bolts and rivet.
Since such buildings with the advantages of fast installation, environmental friendliness and higher earthquake resistance, the application for such buildings are extremely wide, and it’s can be used as barn, hen house and materials warehouse.

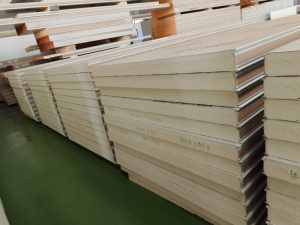

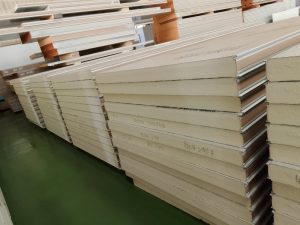

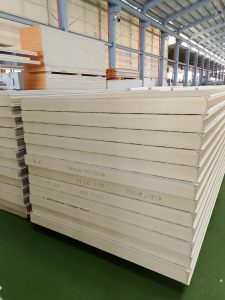

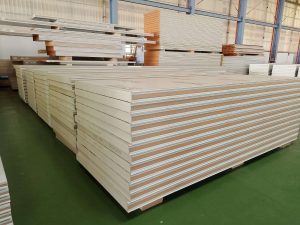

INSULATED WALL PANEL
(POLYURETHANE)
WIDTH: 1.15 meter width;
LENGTH: Customizable
RIB HEIGHT: 2mm
DENSITY: 38kgs – 45kgs / m3
SKIN METAL THICKNESS: 0.4-0.6mm
INSULATION THICKNESS:
- 25mm
- 50mm
- 75mm
- 100mm
- 125mm
- 150mm
- 175mm
- 200mm
MATERIAL FINISH:
- PPGI
- Aluminum
- Stainless Steel
- Aluminum Kraft
- Kraft Paper
INSULATED ROOF PANEL
(POLYURETHANE)
WIDTH: 1.00 meter width;
LENGTH: Customizable
RIB HEIGHT: 2mm
RIB SPACING: 250mm
DENSITY: 38kgs – 45kgs / m3
SKIN METAL THICKNESS: 0.4-0.6mm
INSULATION THICKNESS:
- 20mm
- 25mm
- 35mm
- 50mm
- 75mm
MATERIAL FINISH:
- PPGI
- Aluminum
- PVC Aluminum Sheet
- Stainless Steel
- Aluminum Kraft
- Kraft Paper
INSULATED DOOR PANEL
(POLYURETHANE)
SIZE: Customizable
SKIN METAL: 0.6mm PPGI
PUR DENSITY: 38kgs – 45kgs / m3
TYPE: Swing or Sliding
Heated or Non-Heated
INSULATION THICKNESS: 1-8 inches
EXPANDED POLYSTYRENE
PANEL (EPS)
FOR WALL AND CEILING
TYPE: Ribbed Type and Plain Type
WIDTH: 0.96 meter width
LENGTH: Customizable
COLOR: Off-White
INSULATION THICKNESS: 2-4 inches
PPGI THICKNESS: 0.20mm & 0.35mm
FOR ROOF
WIDTH: 0.98 meter width
LENGTH: Customizable
COLOR: Red and Green
INSULATION THICKNESS: 2-3 inches
PPGI THICKNESS: 0.375mm
REFRIGERATION UNIT
SYSTEM
BRAND:
- Copeland
- Bitzer
- Tecumseh
INCLUSIONS:
- Fan motor
- Oil Separator
- Accumulator
- Receiver Tank
- High & Low Controls
- Filter Drier
- Sight Glass
- Control Panel
PRECAST CONCRETE
WALL PANEL
SIZE: 8ft x 2ft
DENSITY: 650 kg/m3
THICKNESS: 75mm, 100mm & 150mm
COMPOSITION:
- Sand
- Cement
- EPS Foam Particles
- Calcium Silicate Board
PREFABRICATED
CONTAINER HOUSE
FRAME: 2.3mm Galvanized Profile
WALL: 50mmThk EPS Panel
ROOF: 40mm Glass Wool with
0.45mm Steel Cover
CEILING: 0.23mm Steel Sheet
FLOOR: 18mm Fire Proof
Magnesium Plate
DOOR: 1 pc. 9.25mx 2.040m
WINDOW: 2 pcs. 9.20m x 1.200m
ELECTRICAL:
- 1 pc Switch
- 2 pcs Sockets
- 1 pc Breaker
- 2 pcs LED Lights
- 1 pc Electrical Distribution Box
ALUMINUM
COMPOSITE PANEL
TYPE: Glossy and Matte
SIZE: 1220mm x 2440mm
THICKNESS: 3mm and 4mm
*COLOR AVAILABILITY REQUIRES APPROVAL FROM WAREHOUSE*
PU CONCRETE MORTAR
THICKNESS:
- 3mm
- 4mm
- 6mm
- 9mm
COLOR:
- Green
- Oxide Red
- Blue
- Light Gray
- Mid Gray
- Beige
RACKING SYSTEM
This warehouse racking system is a storage solution that stacks materials in horizontal rows with multiple levels.
This system can help you manage and better utilize your warehouse space while sorting cargo to streamline operations.
SINGLE METAL ROOFING
CORRUGATED:
- SIZE: 3ft & 4ft
- THICKNESS (3ft): 0.35mm & 0.4mm
- THICKNESS (4ft): 0.35mm, 0.4mm, 0.5mm & 0.6mm
RIBTYPE:
- SIZE: 4ft
- THICKNESS: 0.35mm, 0.4mm, 0.5mm & 0.6mm
TWINRIB:
- SIZE: 4ft
- THICKNESS: 0.35mm, 0.4mm, 0.5mm & 0.6mm
STEEL DECKING
WEB DECK
EFFECTIVE WIDTH:
- 1.00m
- 1.025m
THICKNESS:
- 0.8mm
- 0.9mm
- 1.0mm
- 1.2mm
FLAT DECK
EFFECTIVE WIDTH:
- 0.250m
- 0.406m
- 0.470m
- 0.609m
THICKNESS:
- 0.8mm
- 0.9mm
- 1.0mm
- 1.2mm
ROCK WOOL &
FIBER GLASS WOOL
ROCKWOOL
Bare and WITH Foil is available.
BOARD TYPE:
- 80kgs = 50mm x 0.6mW x 1.2mL
- 60kgs = 50mm x 0.6mW x 1.2mL
- 50kgs = 50mm x 0.6mW x 1.2mL
BLANKET TYPE:
- 100kgs = 50mm x 0.6mW x 5.0mL
- 60kgs = 50mm x 0.6mW x 5.0mL
- 50kgs = 50mm x 0.6mW x 5.0mL
FIBER GLASS WOOL
Bare and WITH Foil is available.
BOARD TYPE:
- 48kgs = 50mm x 1.2mW x 2.3mL
- 48kgs = 25mm x 1.2mW x 2.3mL
- 32kgs = 50mm x 1.2mW x 2.3mL
- 32kgs = 25mm x 1.2mW x 2.3mL
BLANKET TYPE:
- 48kgs = 50mm x 1.2mW x 7.5mL
- 48kgs = 25mm x 1.2mW x 7.5mL
- 32kgs = 50mm x 1.2mW x 15.0mL
- 32kgs = 25mm x 1.2mW x 15.0mL
- 16kgs = 50mm x 1.2mW x 15.0mL
- 16kgs = 25mm x 1.2mW x 15.0mL
- 12kgs = 50mm x 1.2mW x 15.0mL
STYRO BOARD
SIZE:
- 4ft x 8ft
THICKNESS:
- 1/2 inch to 24 inches
TYPES:
- P Type (Ordinary) : P13, P16, P24, P32
- F Type (Fire Retardant) : F16, F24, P32, F40
- EPS Type (Structural) : EPS15, EPS19, EPS22, EPS29, EPS39
